Building OpenUSD on Debian

2025-08-30

OpenUSD is officially tested on AlmaLinux, with non-system dependencies built from a custom script. This makes it non-trivial for Debian users to build and run USD against system packages.

This guide summarizes a way of building OpenUSD v25.08 on Debian 13 trixie. We'll build the USD C++ libraries, Python modules, tools (including usdview) and code examples (including the OBJ file format plugin). Tests and documentation won't be built. Some USD dependencies are not packaged for Debian like PTex, MaterialX or Alembic. As such, the matching USD plugins will be left out for now.

Our final USD build will include:

core libraries and their Python wrappers
OpenExec
command line tools and usdview
Draco, OpenColorIO, OpenImageIO and OpenVDB plugins
the code examples

These parts won't be built:

Embree, PTex, Alembic and MaterialX plugins
tests
documentation

The final file layout will look like:

~/opt/OpenUSD-v25.08 is the final installation folder
~/opt/OpenUSD-v25.08.environment is a sourceable script to set up the necessary environment variables to run the USD tools
~/tmp/OpenUSD for the source code
~/tmp/build-OpenUSD for the temporary build files

Is something not explained well enough ? Is there an ambiguity somewhere ? Am I grammatically challenged in English ? Please drop me a message or even better, submit a pull request.

Install system dependencies

First, we need to install some packages:

Git to fetch the USD source code
CMake, make and g++ to compile USD
the development packages "*-dev" of the dependencies
the Python packages needed during build (python3-jinja2 or at runtime
the Qt User Interface Compiler (uic) provided by qt6-base-dev-tools

sudo apt update
sudo apt install \
  cmake \
  g++ \
  libboost-dev \
  libdraco-dev \
  libgl-dev \
  libosd-dev \
  libopencolorio-dev \
  libopenimageio-dev \
  libopenvdb-dev \
  libtbb-dev \
  make \
  python3-dev \
  python3-jinja2 \
  python3-opengl \
  python3-pyside6.qtopenglwidgets \
  qt6-base-dev-tools

Working around an OpenSubdiv packaging bug

OpenSubdiv, Pixar's mesh subdivision surface library, is installed by libosd-dev. The package ships the shared libraries libosdCPU.so and libosdGPU.so only, and not the static versions "libosdCPU.a" and "libosdGPU.a". This in turns confuses cmake, which expects both files to be present on the filesystem or it'll fail while searching for OpenSubdiv.

We are going to trick cmake by creating empty files at the expected static library paths. This will be good enough to build USD for now, until the debian package is fixed.

sudo touch \
  /usr/lib/x86_64-linux-gnu/libosdCPU.a \
  /usr/lib/x86_64-linux-gnu/libosdGPU.a

Fetch OpenUSD's source code

The public version of OpenUSD (Pixar keeps a version internally) is developped on GitHub. We'll clone it locally and get the version we want to build.

# First, we ensure our build and install folders exist

mkdir -p ~/opt ~/tmp

# Then we make a local clone of the source code
# and checkout USD version v25.08

cd ~/tmp
git clone https://github.com/PixarAnimationStudios/OpenUSD.git
cd OpenUSD
git checkout v25.08

Patch USD to build with `uic`

USD expects pyside6-uic, but it doesn't exist on Debian. Instead, Qt user interface code is generated with uic -g python. I've made a GitHub Pull Request to build with uic directly. Until it's accepted, we'll download and apply the patch manually.

wcurl https://github.com/PixarAnimationStudios/OpenUSD/pull/3541.patch
git apply 3541.patch

Building and installing USD

Everything should now be in order to build and install OpenUSD. We're going to make a temporary build folder, configure the build system with cmake, then build and install USD. The source code is rather large, so it's going to take a little while. On my 12 cores Xeon E5-1650, it takes around half an hour.

# Move to the temporary build folder

cd ~/tmp
mkdir build-OpenUSD
cd build-OpenUSD

# Configure and build OpenUSD

cmake ../OpenUSD/ \
  -DPYSIDE_BIN_DIR=/usr/lib/qt6/libexec \      # Tells where uic is located
  -DPXR_BUILD_DRACO_PLUGIN=ON \
  -DPXR_BUILD_OPENIMAGEIO_PLUGIN=ON \
  -DPXR_BUILD_OPENCOLORIO_PLUGIN=ON \
  -DPXR_ENABLE_OPENVDB_SUPPORT=ON \
  -DPXR_BUILD_TESTS=FALSE \                    # No test, faster build
  -DPXR_BUILD_DOCUMENTATION=OFF \              # No doc, less dependencies
  -DCMAKE_INSTALL_PREFIX=~/opt/OpenUSD-v25.08  # Sets the install location

# Build USD
# --parallel `nproc` ensures all CPU cores are used, for faster builds.
# `nproc` returns the number of cores of the system.

cmake --build . --parallel `nproc`

# Install USD to `~/opt/OpenUSD-v25.08

cmake --install .

At that point our USD is built and installed. Its installation folder content should look like:

tree -d ~/opt/OpenUSD-v25.08

/home/charles/opt/OpenUSD-v25.08/
├── bin
├── cmake
├── include
│   └── pxr
│       ├── base
│       │   ├── arch
│       │   ├── gf
│       │   ├── js
│       │   ├── pegtl
│       │   │   └── pegtl
│       │   │       ├── contrib
│       │   │       │   ├── icu
│       │   │       │   └── internal
│       │   │       └── internal
│       │   ├── plug
│       │   ├── tf
│       │   │   ├── pxrCLI11
│       │   │   └── pxrTslRobinMap
│       │   ├── trace
│       │   ├── ts
│       │   ├── vt
│       │   └── work
│       │       └── workTBB
│       ├── exec
│       │   ├── ef
│       │   ├── esf
│       │   ├── esfUsd
│       │   ├── exec
│       │   ├── execGeom
│       │   ├── execUsd
│       │   └── vdf
│       ├── external
│       │   └── boost
│       │       └── python
│       │           ├── converter
│       │           ├── detail
│       │           │   └── mpl2
│       │           ├── object
│       │           └── suite
│       │               └── indexing
│       │                   └── detail
│       ├── imaging
│       │   ├── cameraUtil
│       │   ├── garch
│       │   ├── geomUtil
│       │   ├── glf
│       │   ├── hd
│       │   ├── hdar
│       │   ├── hdGp
│       │   ├── hdsi
│       │   ├── hdSt
│       │   ├── hdStorm
│       │   ├── hdx
│       │   ├── hf
│       │   ├── hgi
│       │   ├── hgiGL
│       │   ├── hgiInterop
│       │   ├── hio
│       │   ├── hioOpenVDB
│       │   └── pxOsd
│       ├── usd
│       │   ├── ar
│       │   ├── kind
│       │   ├── pcp
│       │   ├── sdf
│       │   ├── sdr
│       │   ├── usd
│       │   ├── usdGeom
│       │   ├── usdHydra
│       │   ├── usdLux
│       │   ├── usdMedia
│       │   ├── usdPhysics
│       │   ├── usdProc
│       │   ├── usdRender
│       │   ├── usdRi
│       │   ├── usdSemantics
│       │   ├── usdShade
│       │   ├── usdSkel
│       │   ├── usdUI
│       │   ├── usdUtils
│       │   └── usdVol
│       ├── usdImaging
│       │   ├── usdAppUtils
│       │   ├── usdImaging
│       │   ├── usdImagingGL
│       │   ├── usdProcImaging
│       │   ├── usdRiPxrImaging
│       │   ├── usdSkelImaging
│       │   ├── usdviewq
│       │   └── usdVolImaging
│       └── usdValidation
│           ├── usdGeomValidators
│           ├── usdPhysicsValidators
│           ├── usdShadeValidators
│           ├── usdSkelValidators
│           ├── usdUtilsValidators
│           └── usdValidation
├── lib
│   ├── python
│   │   └── pxr
│   │       ├── Ar
│   │       │   └── __pycache__
│   │       ├── CameraUtil
│   │       │   └── __pycache__
│   │       ├── GeomUtil
│   │       │   └── __pycache__
│   │       ├── Gf
│   │       │   └── __pycache__
│   │       ├── Glf
│   │       │   └── __pycache__
│   │       ├── Kind
│   │       │   └── __pycache__
│   │       ├── Pcp
│   │       │   └── __pycache__
│   │       ├── Performance
│   │       │   └── ExplicitMetrics
│   │       ├── Plug
│   │       │   └── __pycache__
│   │       ├── PxOsd
│   │       │   └── __pycache__
│   │       ├── __pycache__
│   │       ├── Sdf
│   │       │   └── __pycache__
│   │       ├── Sdr
│   │       │   └── __pycache__
│   │       ├── SdrGlslfx
│   │       ├── Tf
│   │       │   ├── __pycache__
│   │       │   └── testenv
│   │       ├── Trace
│   │       │   └── __pycache__
│   │       ├── Ts
│   │       │   └── __pycache__
│   │       ├── Usd
│   │       │   └── __pycache__
│   │       ├── UsdAppUtils
│   │       │   └── __pycache__
│   │       ├── UsdDraco
│   │       ├── UsdGeom
│   │       │   └── __pycache__
│   │       ├── UsdHydra
│   │       ├── UsdImagingGL
│   │       │   └── __pycache__
│   │       ├── UsdLux
│   │       │   └── __pycache__
│   │       ├── UsdMedia
│   │       ├── UsdPhysics
│   │       ├── UsdProc
│   │       ├── UsdRender
│   │       │   └── __pycache__
│   │       ├── UsdResolverExample
│   │       ├── UsdRi
│   │       ├── UsdSchemaExamples
│   │       ├── UsdSemantics
│   │       │   └── __pycache__
│   │       ├── UsdShade
│   │       │   └── __pycache__
│   │       ├── UsdShaders
│   │       ├── UsdSkel
│   │       ├── UsdUI
│   │       ├── UsdUtils
│   │       │   └── __pycache__
│   │       ├── UsdValidation
│   │       ├── Usdviewq
│   │       │   ├── fonts
│   │       │   │   ├── Roboto
│   │       │   │   └── Roboto_Mono
│   │       │   ├── icons
│   │       │   └── __pycache__
│   │       ├── UsdVol
│   │       │   └── __pycache__
│   │       ├── Vt
│   │       │   └── __pycache__
│   │       └── Work
│   │           └── __pycache__
│   └── usd
│       ├── ar
│       │   └── resources
│       ├── esf
│       │   └── resources
│       ├── esfUsd
│       │   └── resources
│       ├── exec
│       │   └── resources
│       ├── execGeom
│       │   └── resources
│       ├── execUsd
│       │   └── resources
│       ├── glf
│       │   └── resources
│       │       └── shaders
│       ├── hd
│       │   └── resources
│       │       └── codegenTemplates
│       ├── hdGp
│       │   └── resources
│       ├── hdsi
│       │   └── resources
│       ├── hdSt
│       │   └── resources
│       │       ├── shaders
│       │       └── textures
│       ├── hdx
│       │   └── resources
│       │       ├── shaders
│       │       └── textures
│       ├── hgiGL
│       │   └── resources
│       ├── hio
│       │   └── resources
│       ├── hioOpenVDB
│       │   └── resources
│       ├── sdf
│       │   └── resources
│       ├── sdr
│       │   └── resources
│       ├── usd
│       │   └── resources
│       │       ├── codegenTemplates
│       │       └── usd
│       ├── usdGeom
│       │   └── resources
│       │       └── usdGeom
│       ├── usdGeomValidators
│       │   └── resources
│       ├── usdHydra
│       │   └── resources
│       │       ├── shaders
│       │       └── usdHydra
│       ├── usdImaging
│       │   └── resources
│       ├── usdImagingGL
│       │   └── resources
│       ├── usdLux
│       │   └── resources
│       │       └── usdLux
│       ├── usdMedia
│       │   └── resources
│       │       └── usdMedia
│       ├── usdPhysics
│       │   └── resources
│       │       └── usdPhysics
│       ├── usdPhysicsValidators
│       │   └── resources
│       ├── usdProc
│       │   └── resources
│       │       └── usdProc
│       ├── usdProcImaging
│       │   └── resources
│       ├── usdRender
│       │   └── resources
│       │       └── usdRender
│       ├── usdRi
│       │   └── resources
│       │       └── usdRi
│       ├── usdRiPxrImaging
│       │   └── resources
│       ├── usdSemantics
│       │   └── resources
│       │       └── usdSemantics
│       ├── usdShade
│       │   └── resources
│       │       └── usdShade
│       ├── usdShadeValidators
│       │   └── resources
│       ├── usdSkel
│       │   └── resources
│       │       └── usdSkel
│       ├── usdSkelImaging
│       │   └── resources
│       │       └── shaders
│       ├── usdSkelValidators
│       │   └── resources
│       ├── usdUI
│       │   └── resources
│       │       └── usdUI
│       ├── usdUtilsValidators
│       │   └── resources
│       ├── usdValidation
│       │   └── resources
│       ├── usdVol
│       │   └── resources
│       │       └── usdVol
│       └── usdVolImaging
│           └── resources
├── plugin
│   └── usd
│       ├── hdStorm
│       │   └── resources
│       ├── hioAvif
│       │   └── resources
│       ├── hioOiio
│       │   └── resources
│       ├── sdrGlslfx
│       │   └── resources
│       ├── usdDraco
│       │   └── resources
│       └── usdShaders
│           └── resources
│               └── shaders
└── share
    └── usd
        ├── examples
        │   ├── bin
        │   ├── include
        │   │   ├── examples
        │   │   │   └── usdSchemaExamples
        │   │   └── pxr
        │   │       ├── imaging
        │   │       │   └── hdTiny
        │   │       └── usd
        │   │           ├── usdDancingCubesExample
        │   │           └── usdResolverExample
        │   └── plugin
        │       ├── hdTiny
        │       │   └── resources
        │       ├── usdDancingCubesExample
        │       │   └── resources
        │       │       └── usdDancingCubesExample
        │       ├── usdObj
        │       │   └── resources
        │       ├── usdRecursivePayloadsExample
        │       │   └── resources
        │       │       └── usdRecursivePayloadsExample
        │       ├── usdResolverExample
        │       │   └── resources
        │       └── usdSchemaExamples
        │           └── resources
        │               └── usdSchemaExamples
        └── tutorials
            ├── authoringProperties
            ├── authoringVariants
            ├── convertingLayerFormats
            ├── endToEnd
            │   ├── assets
            │   │   ├── Ball
            │   │   │   └── tex
            │   │   └── Table
            │   ├── scripts
            │   └── tutorial_scripts
            ├── helloWorld
            ├── referencingLayers
            └── traversingStage

344 directories

Making the environment script

Because we've installed USD in a non-standard location as to avoid polluting the system files in case of mistakes, the system does not know where to find the executables, the libraries nor the python modules. We need to set environment variables to use our newly built USD.

First, paste the following content into ~/opt/OpenUSD-v25.08.environment.

# This goes to ~/opt/OpenUSD-v25.08.environment

export PYTHONPATH="$PYTHONPATH":~/opt/OpenUSD-v25.08/lib/python
export PATH="$PATH":~/opt/OpenUSD-v25.08/bin

Then source the file:

source ~/opt/OpenUSD-v25.08.environment

Testing the USD installation

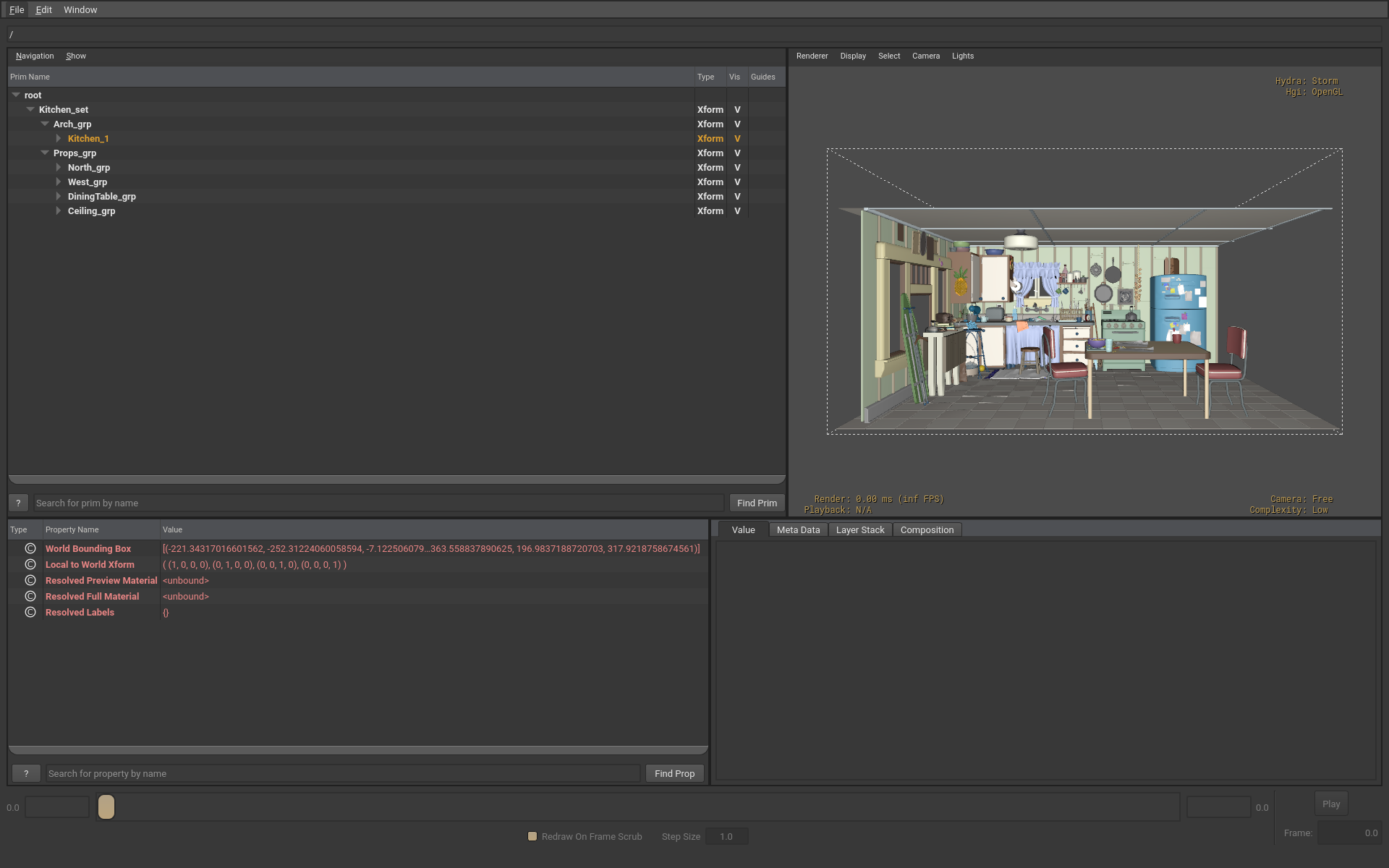

Download Pixar's sample USD Kitchen Set and open it with usdview. If a similar image is displayed, it means USD is correctly built and installed.

usdview Kitchen_set.usd
